Oyaide QAC-212R Audio Cables.

We'd like to introduce you to a new audio cable from Oyaide. The new Oyaide QAC-212R is the new entry level cable from Oyaide, and have we got some good news for you because this little cable is just so good we are confident it will improve you system and give you a totally new and clearer sound, we are that confident in just how good this stereo hifi cable is, so lets look in more detail about the Oyaide QAC 212R

LC-OFC Conductor

LC-OFC Quantum is a material produced by linearly crystallizing Class 1 OFC. By removing crystal grain boundary composed of mainly hydrogen gas, it achieved high-degree of purity (99.995%) and low oxygen content (less than 10ppm). It is originally developed by HITACHI cable and it used to be applied to Oyaides QAX-112 interconnect which was on the market for more than decade.
Although This cable has now been discontinued Oyaide offered to reproduce legendary LC-OFC Quantum by answering many of Oyaide customers' requests in 2008.



High density shielding

AS well as the conductor, LC-OFC Quantum is applied for the shielding material in order to protect the extremly sensitive audio signal. The high density (over 90% coverage) braided shielding protects its conductor from external noise.



RCA used on the Oyaide QAC-212R

The RCA connector on theQAC-212R is Oyaide original RCA plugs, the same as those employed on the ACROSS 750RR. Made from RoHS compliant brass and utilizes the nanotube structure for the center pin to provide maximum contact area. The contacts are plated with 0.5 micron thick Rhodium.
The outer shell is processed by NC machining piece by piece. And then, after knurling process, the surface is plated by hard chrome like a cameras body.

All processes including procurement of materials and accurate machining are done in Japan. This brings out the greatness of the "Quantum sound".

Conductor LC-OFC Quantum
Wire Diameter 0.5Sq(50/0.12)
Structure 2p shielding structure
Insulator polyethylene
Inner sheath LDPE(Low-Density Polyethylene)
Shielding LC-OFC Quantum
Outer sheath Pb free PVC
Cable Diameter 9.7mm
Conductor resistance 34O/km(at20?)
insulated resistance 1,000MO/km(at20?)
Capacitance 50pF/m
RCA Plug RoHS compliant brass / 0.5µRhodium plating original RCA plug
Length 0.7m pair/ 1.0m pair/1.3m pair

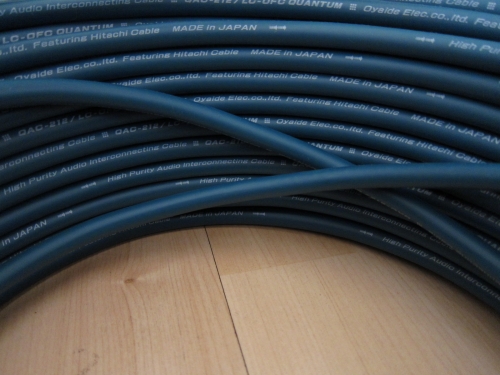

Oyaide QAC 212 is also available of the reel.

At just 16 euros per metre unterminated this cable from Oyaide offers a superb sound at an affordable price
